Application of Vacuum Pumps in Semiconductor Wafer Dicing and Packaging

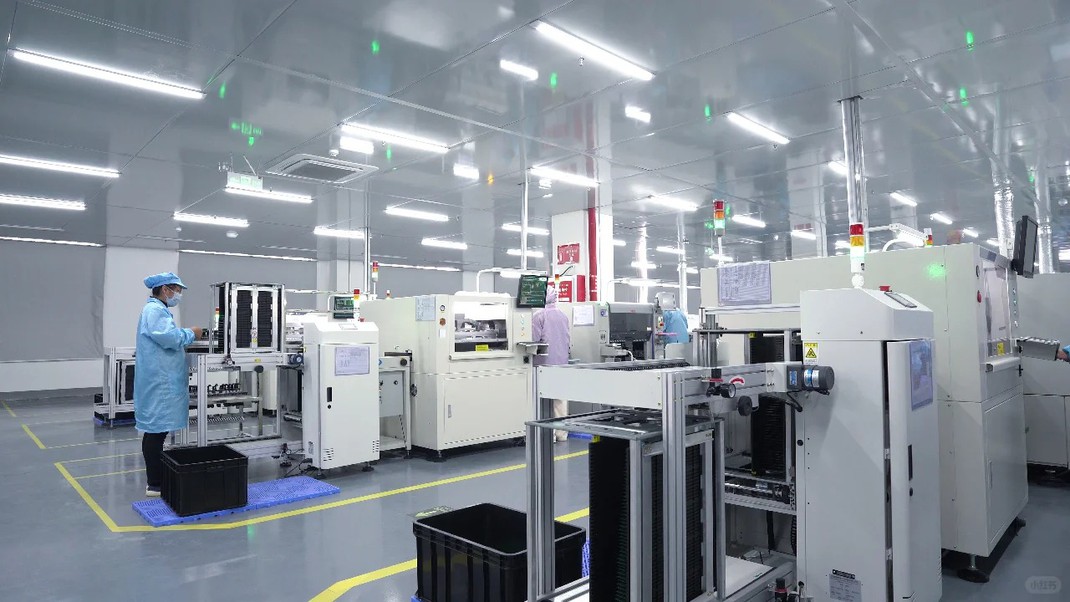

In the back-end of semiconductor manufacturing, wafers need to be diced into individual chips and then packaged. Vacuum technology plays a critical role in this process.
Wafer Dicing
During the dicing process, the wafer is firmly adsorbed onto the chuck of the dicing machine. A high-precision vacuum pump system provides stable and uniform adsorption force, ensuring that the ultra-thin and fragile wafer does not shift or vibrate during high-speed cutting. This is essential for maintaining dicing accuracy, preventing chipping or cracking of the chips, and directly improving the final yield.
Die Attach
In the die attachment step of the packaging process, vacuum nozzles use vacuum suction to precisely pick up individual separated dies and accurately place them onto the lead frame or substrate. The fast response and stable gripping force provided by the vacuum pump ensure precise and efficient operation, preventing damage or misplacement of the chips.
Technical Requirements
This application scenario demands that the vacuum pump must possess high reliability, be oil-free (to prevent contamination of sensitive chip surfaces), have low vibration, and maintain stable pumping speed and ultimate vacuum level.

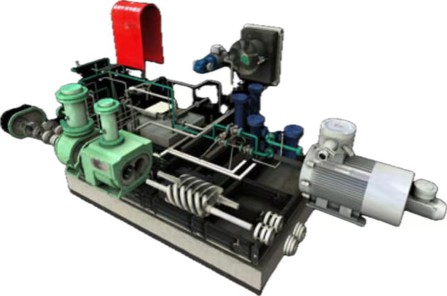

The products that we can offer in this industry:
