Single Screw Pumps

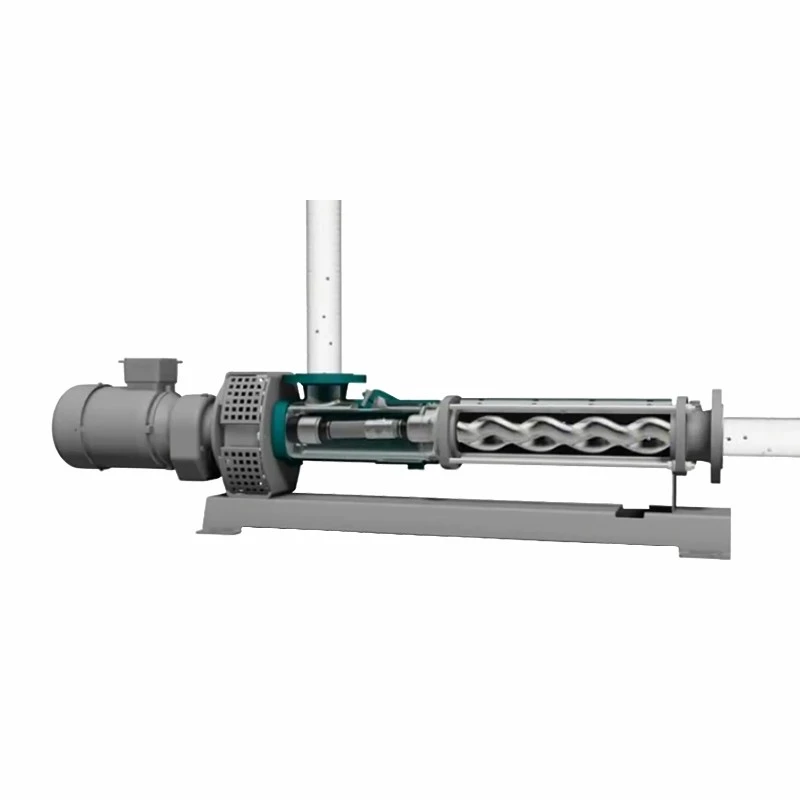

Our distributor partners manufacture large-capacity single-rotor screw pumps. Originating from Japan, these pumps feature a single-threaded metal external screw rotor rotating within a rubber, double-thrust internal screw housing. This creates a continuous movement of the liquid along the screw axis in the space between the two screws, thereby conveying the liquid. These pumps are used to convey both high- and low-viscosity liquids, as well as liquids containing solid particles. Their most common application is the transfer of liquids containing dirt, sludge, or ship bilges.
Advantages
1. Liquids are conveyed by rotating a single-threaded metal screw within two internally threaded rubber stators (housings), continuously moving the space between them. The flow rate can be automatically adjusted by the rotational speed.
2. A variety of seal options are available, expanding its application range.
3. Reverse conveying is possible.
4. Stable flow and pressure, no pulsation, resulting in low operating noise and strong suction capacity.
5. Wide range of applications, suitable for conveying a variety of fluids, including high-viscosity fluids containing solid particles and suspended solids.
Applications
1. Environmental Protection Industry: Sewage and sludge conveying systems for industrial wastewater, municipal wastewater, and restaurant waste.
2. Papermaking Industry: Our single-screw pumps are ideal for conveying materials containing various fibers and components in the papermaking process.
3. Food Industry: Our products are equipped with food-grade rubber, rotors, and housings, making them suitable for conveying viscous and solid-containing fluids such as eight-treasure porridge, fruit drinks, and yogurt.
4. Chemical Industry: Suitable for conveying fluids such as petroleum and high-viscosity lubricants.
5. Marine: Suitable for cleaning and conveying ship bilge sewage and sludge. 6. Others: Mud transportation in the construction industry
